Mini DOGE 3 Setup Guide

Permanently deleted user

Mini DOGE 3 Setup Guide

Purpose: This guide provides step-by-step instructions for setting up and configuring the Mini DOGE 3 cryptocurrency miner.

1. Physical Setup

  • Placement: Position the miner near your network router or switch for the best connection using an Ethernet cable. Wi-Fi can be used if a wired connection is not feasible.

  • Connections:

    • Plug in the Ethernet/network cable (if using wired connection).
    • Attach the antenna if not already installed.
    • Connect the power supply to the miner and power it on.

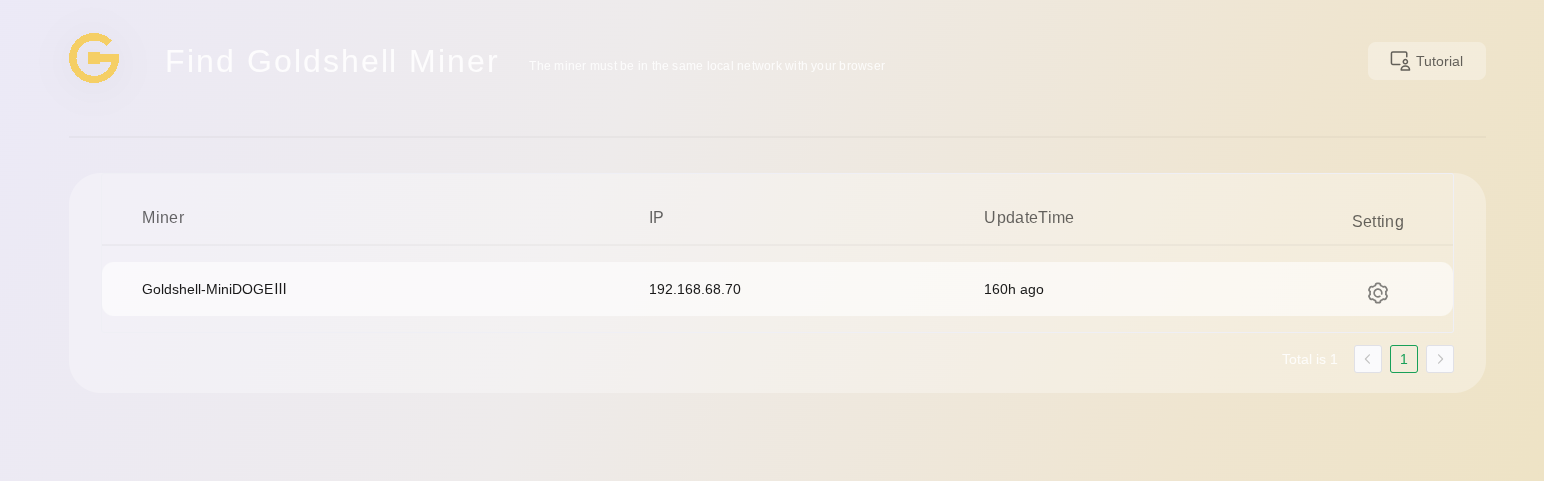

2. Locate the Miner on Your Network

  • Using a device (computer or smartphone) connected to the same network and frequency band:

    1. Open a web browser (e.g., Google Chrome).
    2. Visit: find.goldshell.com

    3. Wait up to 6 minutes for the website to detect your miner’s IP address.

      • If the IP address does not display correctly, press the IP button on the miner and refresh the webpage.
    4. Click the Settings (gear) icon to access the miner’s dashboard.



Important: Record the miner’s IP address. You will need it for future access to the dashboard.

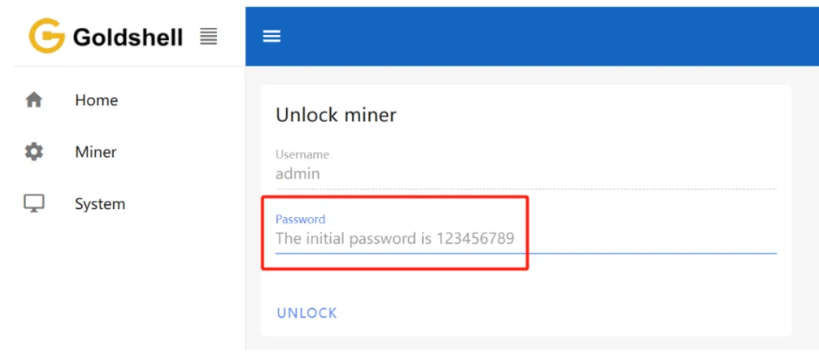

3. Unlock the Miner

  • On the dashboard, click Unlock in the top-right corner.
  • Enter the default password: 123456789

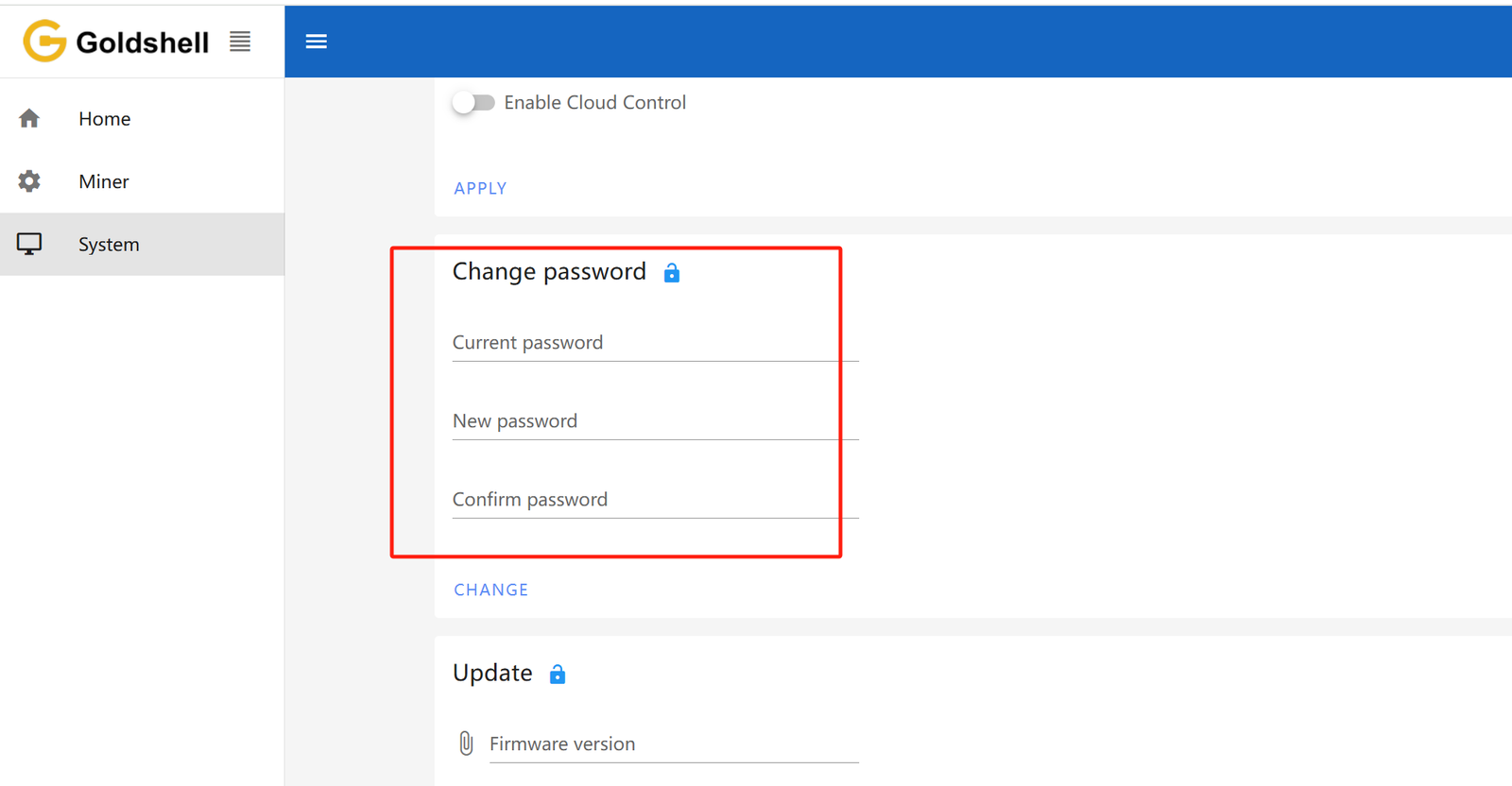

4. Change the Default Password

To enhance security:

  1. Navigate to the System tab after unlocking the miner.
  2. Enter the current password and your new desired password.
  3. Click Change to save your new credentials.

Tutorial-change pw.png

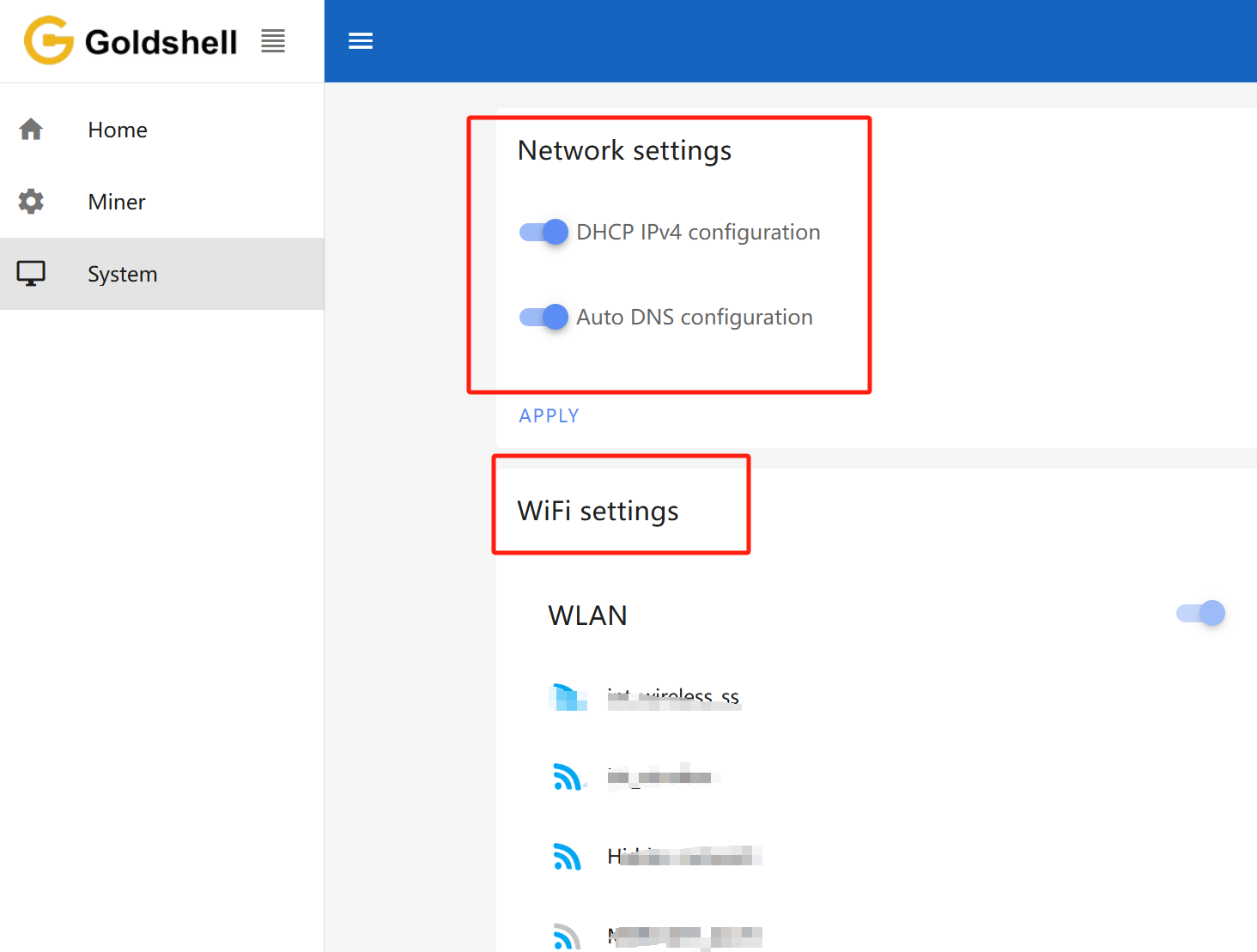

5. Configure Wi-Fi Settings (Optional)

If your miner supports Wi-Fi:

  • After connecting to a Wi-Fi network, verify the connection status in the Wi-Fi Settings section on the dashboard.
  • Follow manufacturer guidelines for enabling, configuring, or disabling Wi-Fi functionality.


6. Configure Mining Pool Settings

  1. Open the miner's dashboard in your web browser.
  2. Navigate to the Miner tab and select Pool Settings.

  3. Input the following pool configuration:

    • Mining Address:
      stratum+tcp://pool-do.texitcoin.org:3643
    • User Name:
      @Your Litecoin Wallet Address.Your TXC Cold Storage Coin ID
      (Example: @ltc2qrhz5ntn8cpswvd3rrxxd73zfd96wpwjqhrkk2h.mB3k9)
    • User Password:
      c4fxyayr5kxfevhrp (same for all users)
  4. Click SAVE at the bottom of the page.

7. Final Notes

  • Allow 5–10 minutes for the miner to connect and stabilize.
  • Monitor your miner’s performance via the mining pool’s website.
